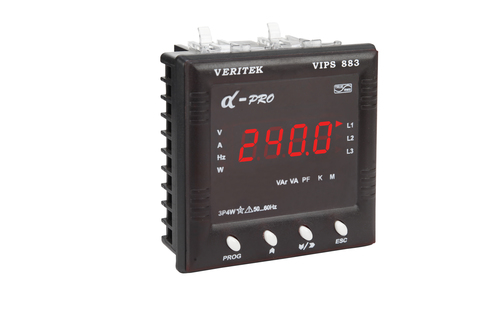

Three Phase Power Meter

Three Phase Power Meter
Three Phase Power Meter
Product Code : VIPS 883
Brand Name : VERITEK
Product Description

Features:

  • 1 Line 4 Digit ultra bright LED display
  • Site Programmable CT & PT ratio( Primary and Secondary)
  • True RMS measurement
  • Password protection
  • Optional features:
    • RS485 Computer Interface
    • 60A external CT module
  • Harmonic measurement(Total & Individual) for voltage
  • Auto ranging
  • Universal Auxiliary supply



Specifications:

Display:1 rows of 4 digits
Digit Height:0.56” (14.3 mm)
Display Scrolling:Automatic/ Manual
Electrical Connection:3Φ- 4 wire
Input Current:0.015 A-6 A AC/ 60A direct external CT
Burden:3VA max for auxiliary supply , 0.2 VA for current and voltage input.
Frequency:45 Hz to 65 Hz
Auxiliary Supply:90-270V AC/DC (15%)
Dimension:
96 x 96mm
Depth ( behind bezzel ) : 55 mm
Panel Cut out : 92 X 92 mm
