Home » Products » Multifunction Meters » LED Power Analyzer

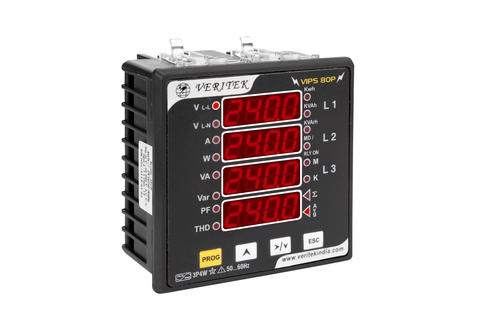

LED Power Analyzer

LED Power Analyzer
LED Power Analyzer
Product Code : VIPS 80P
Brand Name : VERITEK
Product Description

 Features:

  • 7 segment LED display
  • Site Programmable CT & PT Ratio
  • True RMS Measurement
  • Password protection
  • Maximum Demand with relay contact
  • Optional Features:
    • RS485 computer interface
    • 60A direct current(external CT Module available)
  • Harmonic measurement (total and individual)
  • Autoranging
  • Universal auxiliary supply



Specifications:

Display:4 rows of 4 digits (For parameter)
Digit:4
Digit Height:0.39” (9.9 mm)
Display Scrolling:Automatic/ Manual
Electrical Connection:3 phase- 4 wire/ 1 phase- 2 wire
Display Reset:Energy
Input Voltage Range:0-500 VAC (L-L)
Input Current Range:0.015 A – 6 A AC/ Direct 60 A optional
Frequency:45 Hz to 65 Hz
Communication:RS 485 Modbus Protocol
C.T. primary:Programmable
C.T. Secondary:Programmable
P.T Ratio:Programmable
Dimension:
96 x 96mm
Depth ( behind bezzel ) : 55 mm
Panel Cut out : 92 X 92 mm
