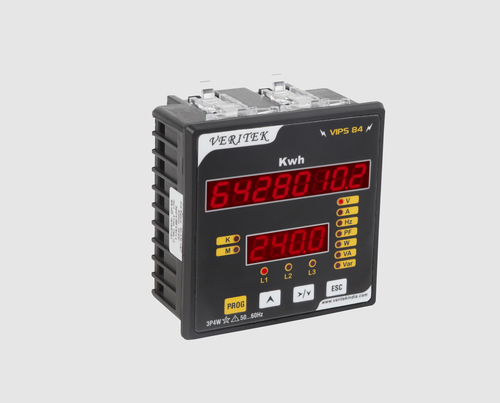

Energy Meter

Energy Meter
Energy Meter
Product Code : VIPS 84
Brand Name : VERITEK
Product Description

Features:

  • 7 segment LED Display
  • Site Programmable CT & PT Ratio
  • True RMS Measurement
  • Password protection
  • Maximum Demand with relay contact
  • Optional Features:
    • RS485 computer interface (only for VIPS 84P)
    • 60A direct current(external CT Module available)
  • Harmonic measurement (total and individual)
  • Auto ranging
  • Universal auxiliary supply



Specifications:

Aux. Supply:90-270 VAC/DC
Voltage Input:0-500 VAC (L-L)
Current Input:0.015 A  6 A AC/ Direct 60 A optional
Burden on CT:3VA
C.T. primary:Programmable
C.T. Secondary:Programmable
P.T Ratio:Programmable up to 132 kV
Frequency::45 Hz to 65 Hz
Display :2 rows, LED

:1 row of 8 digits for Energy display

:1 row of 4 digits for other parameters
Dimension:
96 x 96mm
Depth ( behind bezzel ) : 55 mm
Panel Cut out : 92 X 92 mm
