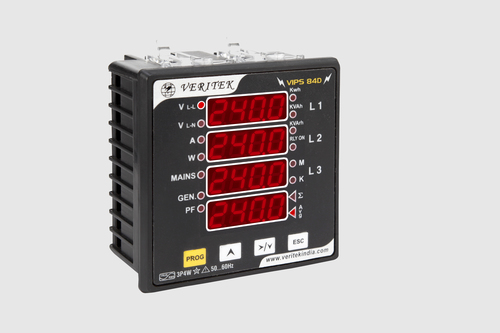

Digital Energy Meter

Digital Energy Meter
Digital Energy Meter
Product Code : VIPS84D DUAL SOURCE
Brand Name : VERITEK
Product Description

Features:

  • 7 segment LED display
  • Site Programmable CT & PT Ratio
  • True RMS Measurement
  • Password protection
  • Optional Features:
    • RS485 computer interface
    • 60A direct current(external CT Module available)
  • Harmonic measurement (total and individual)
  • Auto ranging
  • Universal auxiliary supply



Specifications:



Display:4 rows of 4 digits (For parameter)
Digits:4
Digit height:0.39 (9.9 mm)
Display Scrolling:Automatic/ Manual
Display Reset:Energy
Electrical Connection:3phase- 4 wire/ 1phase- 2 wire
Input Voltage Range:0-500 VAC (L-L)
Input Current Range:0.015 A -6 A AC/ Direct 60 A optional
Relay Output:1 C/O relay for max demand
P.T Ratio:Programmable up to 132 kV
Auxiliary Supply:Programmable
C.T. primary:Programmable
C.T. Secondary:Programmable
Dimension:
96 x 96mm
Depth ( behind  ) : 55 mm
Panel Cut out : 92 X 92 mm
